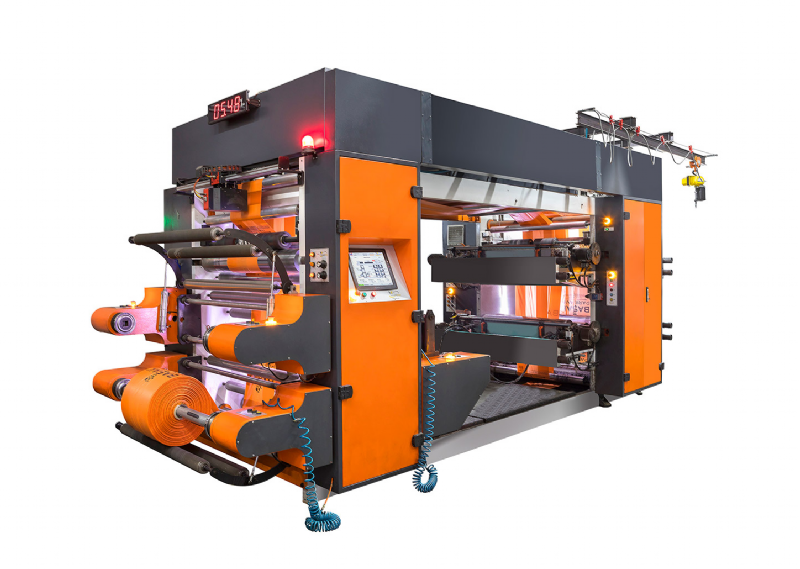

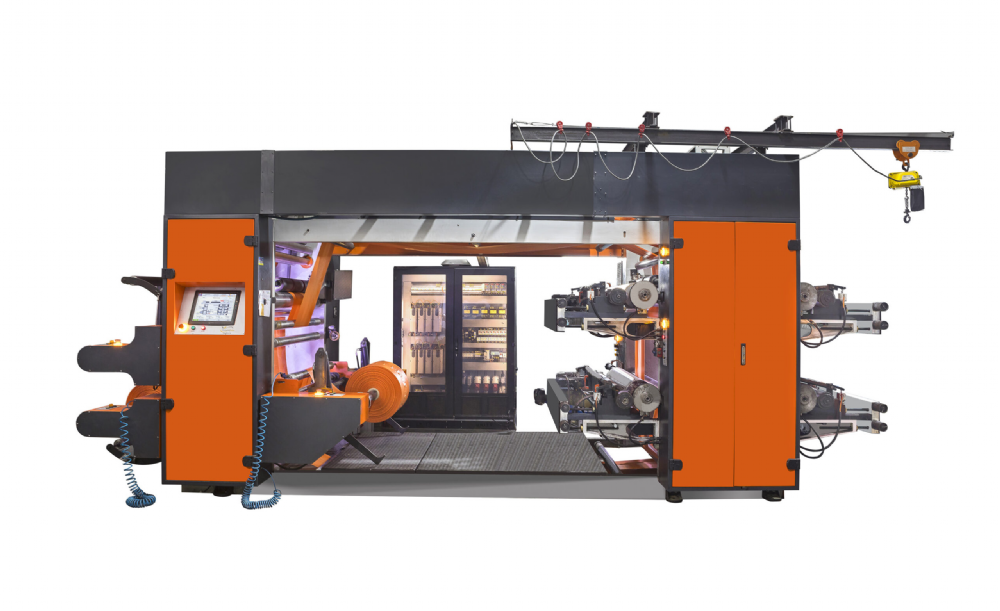

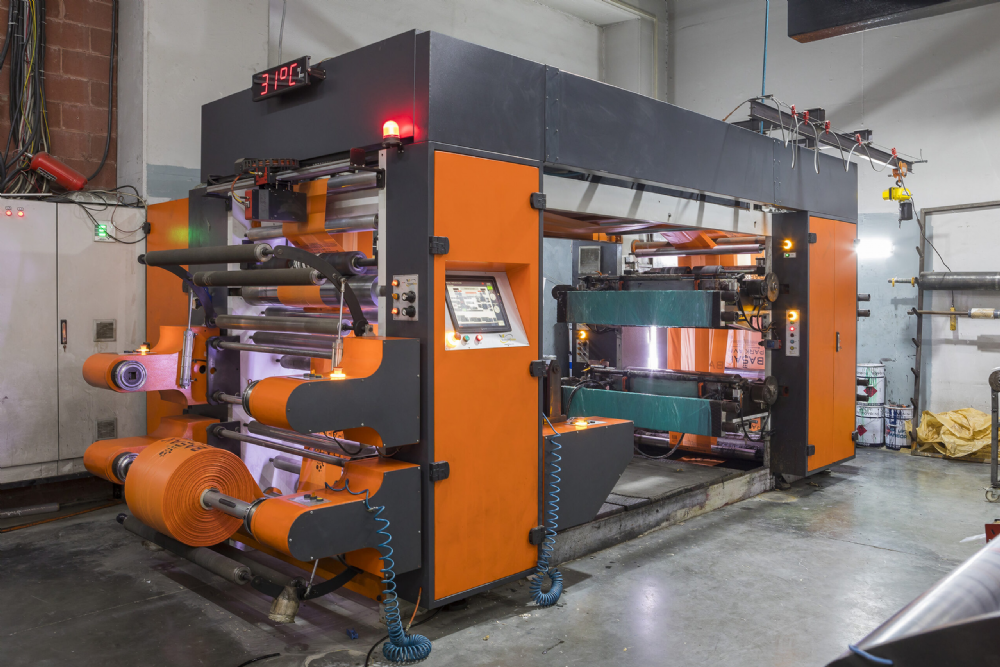

4 Colors Safir BSC 1300 Flexo Printing Machine Specifications

• Printing System:

  • 4 colors, 130 cm width / Product passage 1300 mm
  • Net printing area: 120 cm
  • 4+0 or 2+2 printing possibilities
  • Dr Blade system
  • PLC controlled 10-inch control panel
  • 3 kW servo controlled printing system
  • Servo reducers with planetary system

• Unwinding and Winding System:

  • Electromagnetic unwinder system with dusty brake system
  • Unwinder system with edge control
  • Air shaft with locking wheel

• Pneumatic and Hydraulic Systems:

  • Pneumatic system that separates the plates from the printing when the printing is finished
  • Plate cylinders have even positioning system
  • Anilox values are adjusted in line with customer request
  • SMC brand pneumatic system

• Air and Paint Systems:

  • Web guide with camera print monitoring system
  • 2.2 kW inverter controlled serpentine resistance air drying system
  • Diaphragm paint pumps

• Additional Features:

  • 2 sets of plate cylinders are provided with the machine
  • Fine helical printing gears
  • Mechanical printing speed: 300 m/min
  • Chain electric hoist system for plate and anilox rollers
